Through hole slip ring

Details

A slip ring is designed to transfer electrical powerand/or signals between stationary and rotating components while maintaining continuous connectivity during rotation.

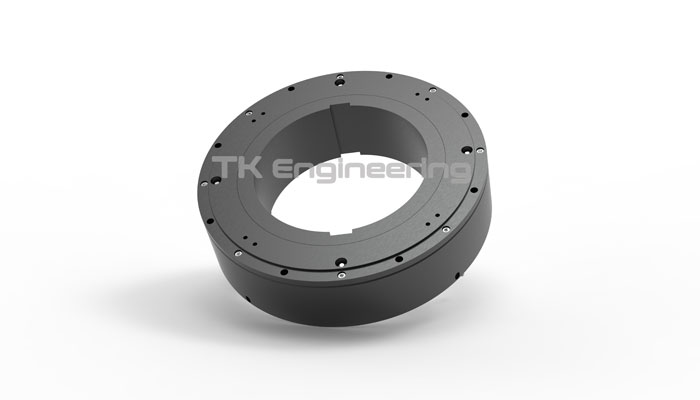

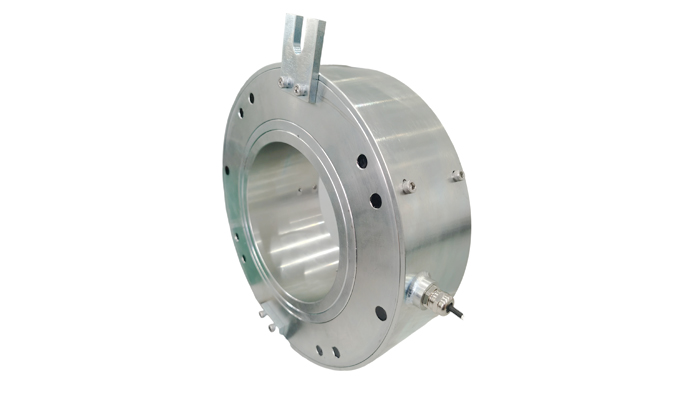

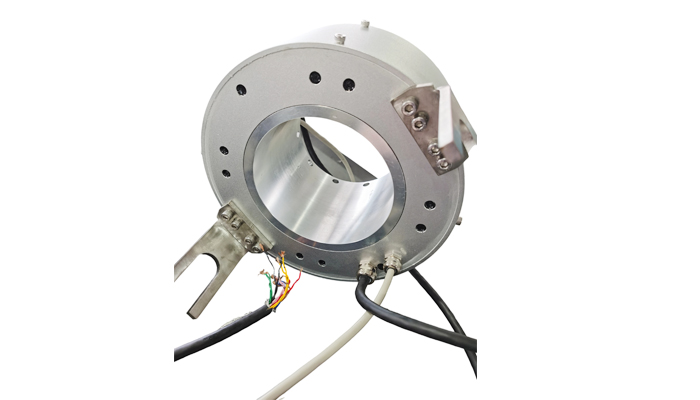

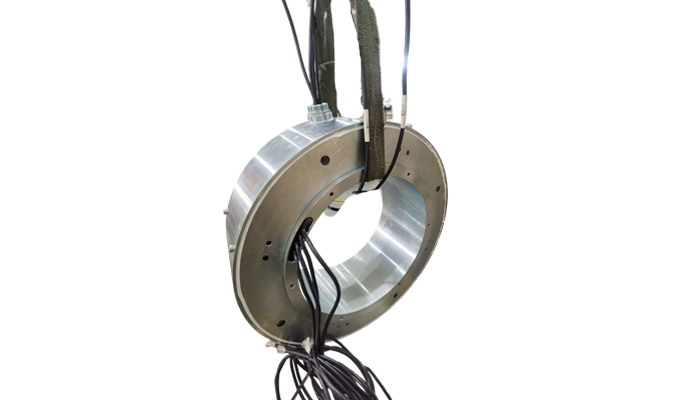

GTK-12/25/50/100-xx through-bore slip rings can be directly sleeved onto rotating shafts or installed via custom flanges


Slip rings capable of transmitting 5A–40A current and various signals (e.g., bus, network signals) through integrated conductive paths.


Channel capacity: 6–220 integrated paths


Contact US
Description
Details

Modular architecture enables rapid delivery of customer-specific configurations.

Full modular design,Streamlined,Compact form factor,Industrial-grade reliability,Broad compatibility.

Internal alloy fiber brush | Lubrication-free.


Maintenance-Free

Signal Transmission Capability,Low-Current Operation,Long-Team Durability.

Long Service Life


Application

Robot,Packaging machinery,Rotary table,Pan-Tilt platform,Military industry,Automation system

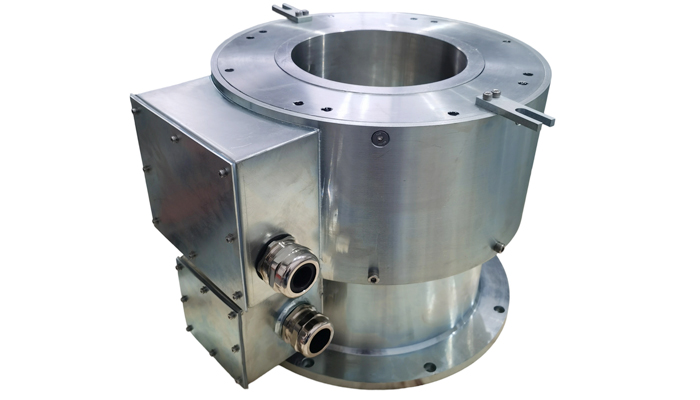

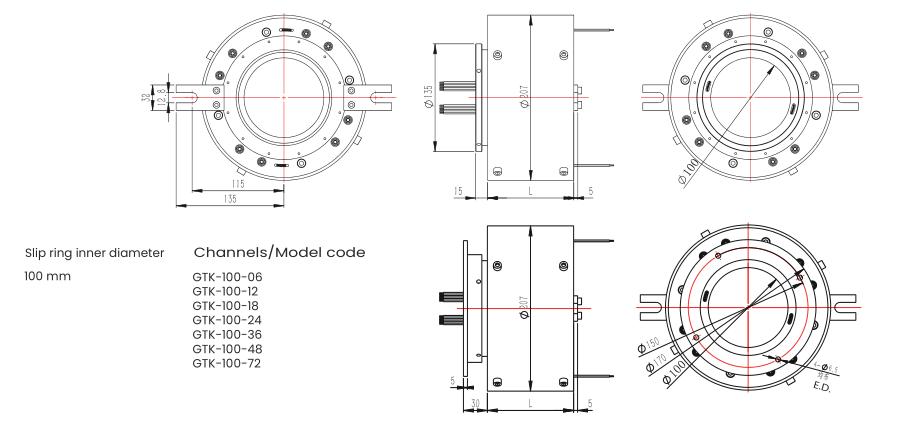

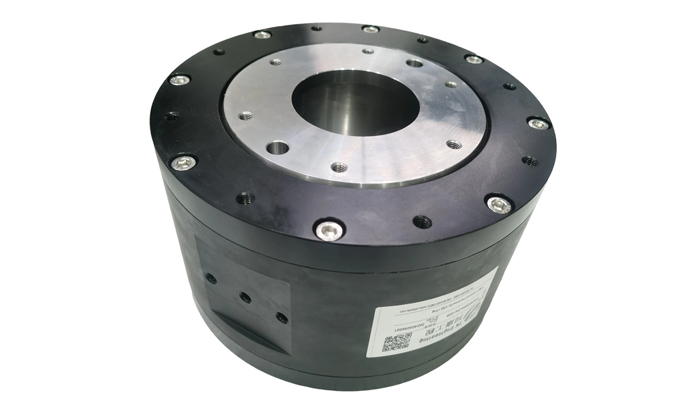

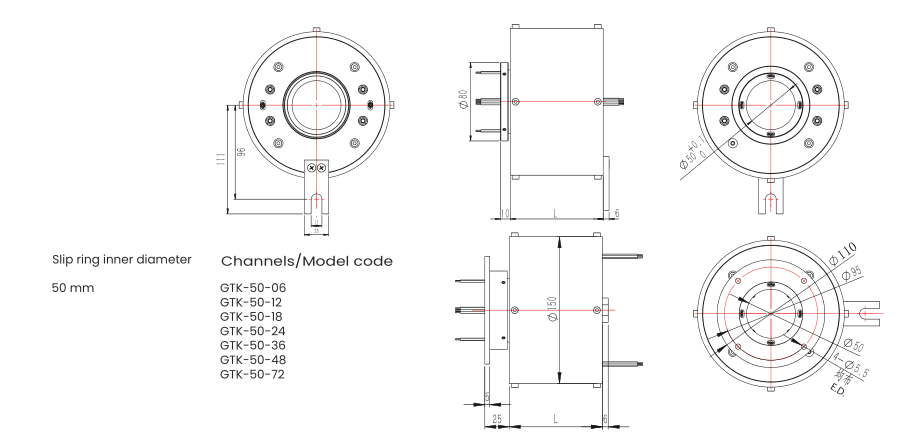

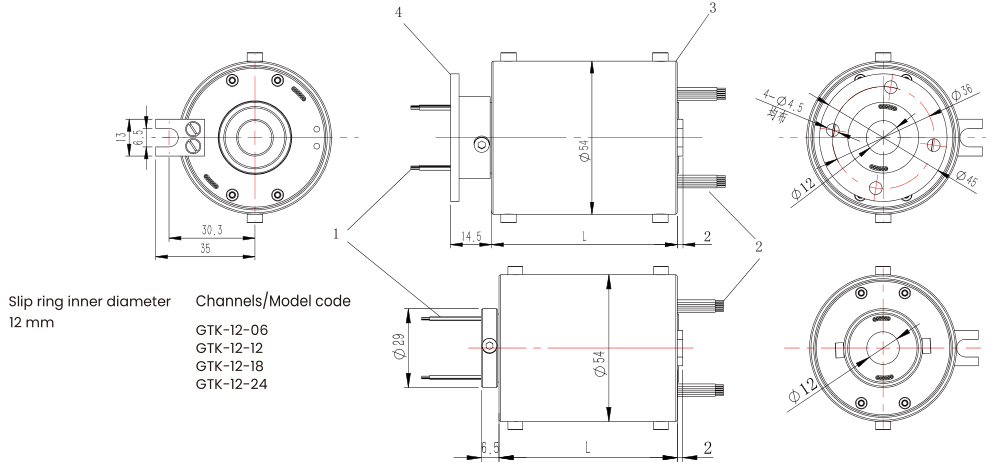

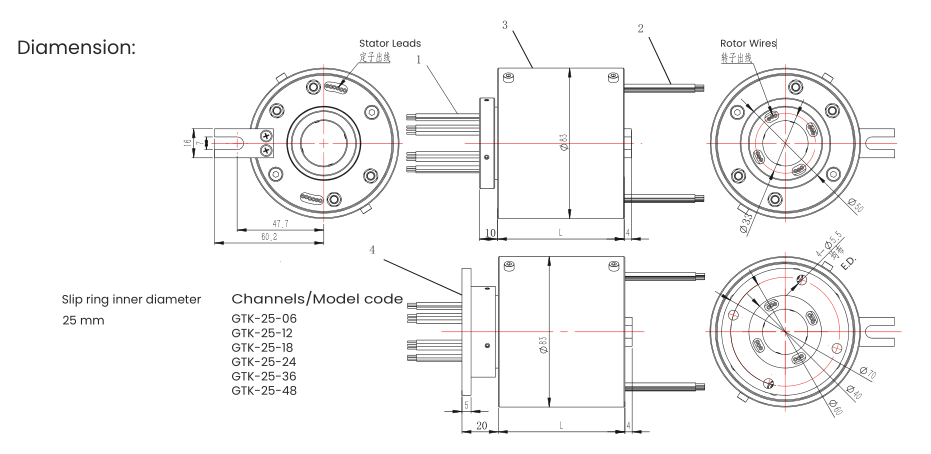

Diamension







Electric Parameters


Maximum Current Capacity voltage / current

max. 380 V / 5 A parallel connection to 40A

Signal Section

24VDC/2A

Dynamic Variation of Resistance

< 10mΩ

Insulation Resistance

> 10³MΩ@500VDC
Dielectric Strength 500V eff.
Transmittable Data Types profiNet,CANBUS,EthterNET,EtherCAT......
Compatible with Compressed Air Accessible

Mechanical Properties

Rotational Speed

max.500RPM

Shell Material

Engineering Plastics or Aluminum alloy needs customization

Maintenance Interval

Maintenance-free


-30°C ... +85°C


[-22°F ... +185°F]

Ingress Protection

Customizable to IP56

Contact material

Precious metal
