High reliability
• Our slip rings are exported globally and serve renowned international shipbuilders with a full range of models. We are also a trusted partner for leading domestic enterprises, including China State Shipbuilding Corporation (CSSC), Zhenhua Heavy Industries, and Dalian Shipbuilding Industry Co., Ltd. (DSIC), providing customized solutions tailored to their needs.
• Over 15 years of proven operational experience
Application
Applications include rotating hoists, marine deck equipment, winch systems, shore power systems, as well as electric propulsion systems
| Standard Models | ||||||
| Type | Channel Count | Power Current | Channel Count | Signals Network | NO. | |
| Type GTK | XX | P | XX | S | GTK-xxP-xxS-NET-FO-RJ | 4 channels of 400A power + |
| Example GTK | 04 | 400 | 18 | S | GTK-04400-18S-NET-2FO-4RJ | 18 signal channels + |
| 2 Ethernet fiber optic channels | ||||||
| + 4 rotary joints | ||||||
| Signal Fiber | Optic | Rotary Joint |
| NET | FO | RJ |
| NET | 2FO | 4RJ |

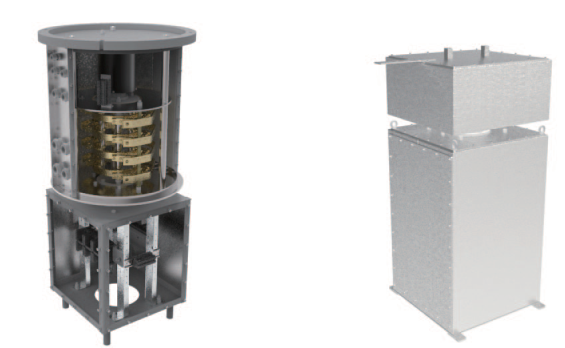

| Selectable Drive Types | ||
| Drive Type | Upper Drive | |
| Lower Drive | ||

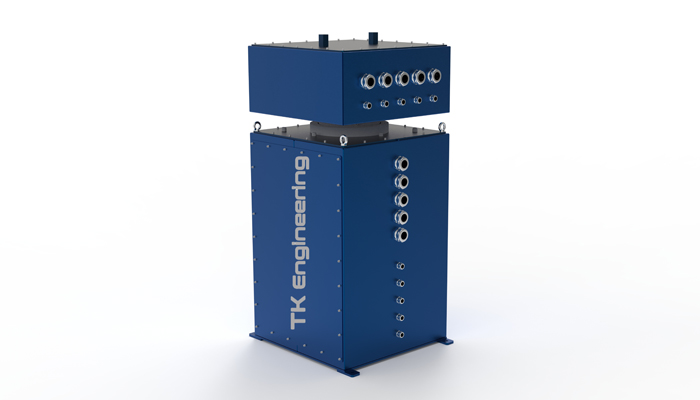

| Marine Hoisting Equipment Slip-ring Assembly | ||
 | ||
Technical Specifications | ||
| Operating Current | mA-1500A | |
| Voltage | up to 15KV | |
| Number of Channels | up to 250 | |
| Signal Options | Digital,Analog,HF,Bus,Network | |
| Junction Box | Optional | |
Mechanical Properties | ||
Rotational Speed | up to 50RPM | |
Shell Material | Optional 316L Stainless Steel | |
Contact Material | Optional High-Silver Alloy or Precision Gold Contacts | |
Working Temperature | -50°C ... +75°C | |
[-50°F ... +167°F] | ||
Ingress Protection | IP60 | |
Optionals | ||
Rotary Encoder | ||
| Rotary Joint | ||
| Fiber Optic Rotary Joint | ||
| Cable Outlet Configuration - Terminal or Tail Cabl | ||
| Transmission Method | ||
| Mounting | ||
 | ||
