Miniature slip ring

A slip ring is designed to transfer electrical powerand/or signals between stationary and rotating components while maintaining continuous connectivity during rotation.

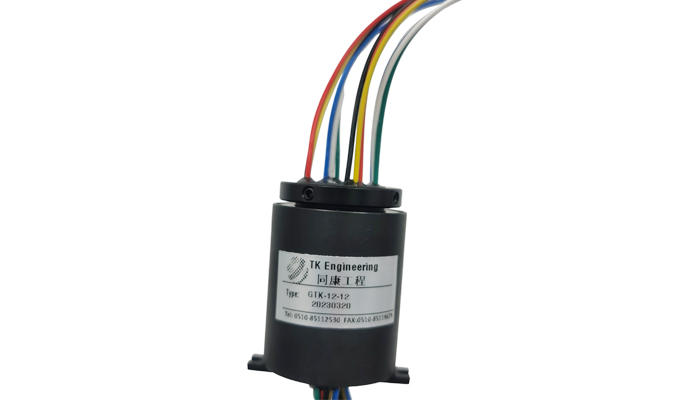

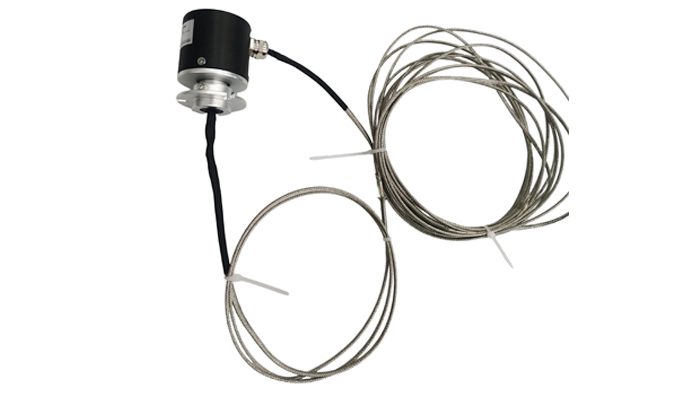

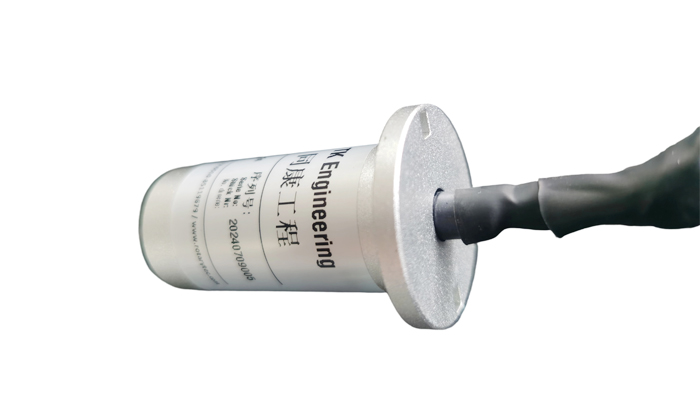

The GTK-C Series is a compact slip ring series designed for applications with stringent space constraints.

Multi-Channel Transmission: Supports 6,12,18,24,36,and56 circuits of low-current power and signal transmission.

Key Applications:Ideal for space-constrained environments such as robotics,medical devices, and miniature industrial equipment

Description

Details

Integrated robust and compact design

• All-in-one molded construction with plug-and-play simplicity

• Internal Gold-Plated Fiber Brushes， Lubrication-Free Operation

Maintenance-Free

• Signal Transmission Capability,Low-Current Operation, Long-Term Durability.

• Long Service Life

Application

Surveillance Equipment,Packaging Machinery,Rotary Table,Pan-Tilt Unit， Testing Apparatus.

Electric Parameters
Maximum Current Capacity		max.240V / 2A
Voltage/Current		max.240V / 25A
Dynamic Variation of Resistance		< 10mΩ
Insulation Resistance		>103M Ω@500VDC
Dielectric Strength		500 V eff.
Mechanical Properties
Rotational Speed	max.300RPM
Shell Material	Engineering Plastics or Aluminum alloy needs customization
Maintenance Interval	Maintenance-free
	-30°C ... +85°C
	[-22°F ... +185°F]
Ingress Protection	IP51
Contact material	Precious metal
Cable	AWG28 Reserve length 300mm
Standard type designation
