High reliability
• Our slip rings are exported globally and serve renowned international shipbuilders with a full range of models. We are also a trusted partner for leading domestic enterprises, including China State Shipbuilding Corporation (CSSC), Zhenhua Heavy Industries, and Dalian Shipbuilding Industry Co., Ltd. (DSIC), providing customized solutions tailored to their needs.
• Over 15 years of proven operational experience
Application
Applications include rotating hoists, marine deck equipment, winch systems, shore power systems, as well as electric propulsion systems
| Standard Models | ||||||
| Type | Channel Count | Power Current | Channel Count | Signals Network | NO. | |
| Type GTK | XX | P | XX | S | GTK-xxP-xxS-NET-FO-RJ |
4 channels of 400A power + |
| Example GTK | 04 | 400 | 18 | S | GTK-04400-18S-NET-2FO-4RJ |
18 signal channels + |
| 2 Ethernet fiber optic channels |
||||||
| + 4 rotary joints |
||||||
| Signal Fiber | Optic | Rotary Joint |
| NET | FO | RJ |
| NET | 2FO | 4RJ |
| Selectable Drive Types |
||
| Drive Type | Upper Drive |
|
| Lower Drive |
||

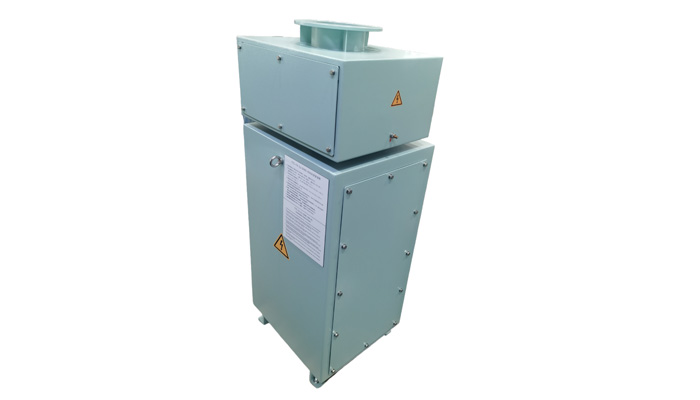

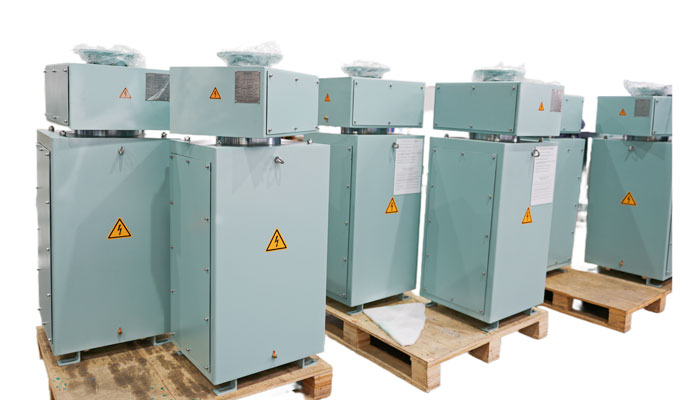

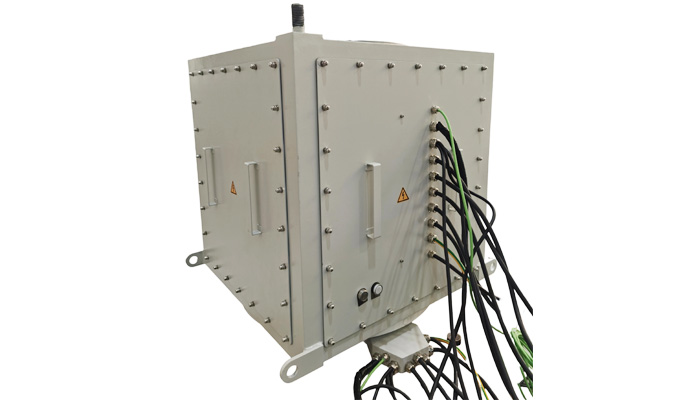

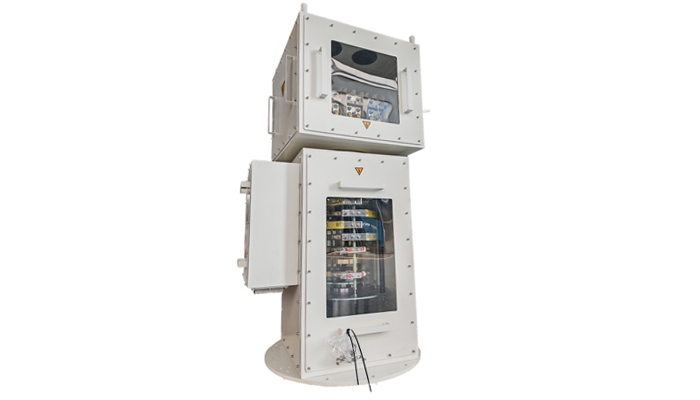

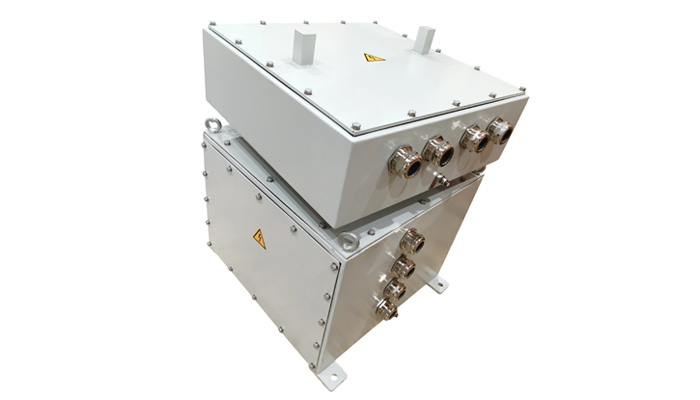

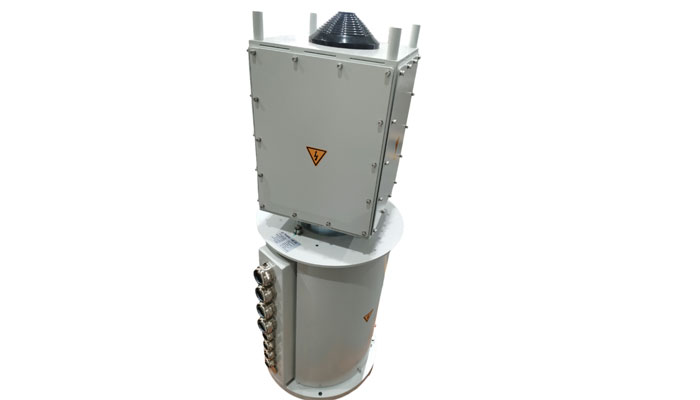

| Marine Hoisting Equipment Slip-ring Assembly |
||
 |
||
Technical Specifications |
|
|
| Operating Current | mA-1500A |
|
| Voltage |
up to 15KV | |
| Number of Channels | up to 250 | |
| Signal Options | Digital,Analog,HF,Bus,Network | |
| Junction Box | Optional | |
Mechanical Properties |
||
Rotational Speed |
up to 50RPM |
|
Shell Material |
Optional 316L Stainless Steel |
|
Contact Material |
Optional High-Silver Alloy or Precision Gold Contacts |
|
Working Temperature |
-50°C ... +75°C |
|
|
[-50°F ... +167°F] |
|
Ingress Protection |
IP60 |
|
Optionals |
||
Rotary Encoder |
||
| Rotary Joint | ||
| Fiber Optic Rotary Joint |
||
| Cable Outlet Configuration - Terminal or Tail Cabl |
||
| Transmission Method |
||
| Mounting | ||
 |
||
