Ex-proof Slip Ring

Details

Explosion-proof slip rings (flameproof type) are intrinsically safe slip ring systemsspecifically engineered for deployment in hazardous atmospheres with flammablegases, explosive dust, or coal mining applications, ensuring compliance with strictsafety standards.


The BJ-30 series explosion-proof slip ring is a fully CNEX and ATEX- certified slip ring system, marking it as China's first domestically manufactured explosion-proofslip ring to achieve ATEX certification. This product complies with EU explosion-proof standards


The BJ-30 series is a custom-engineered solution. For detailed technical parameters, please reach out to TK Engineering.

Contact US
Description
Details

High Safety Level


As one of China's pioneering manufacturers specializing in explosion- proof slip rings, our products are extensively utilized in critical sectors including mining, petroleum, natural gas, LNG vessels, and other explosive atmospheres (ATEX/IECEx-certified environments).


With over a decade of field-proven experience


Application


Mining Cable Reels,LNG Carriers,Oil Drilling Platforms,Paper Manufacturing,Exhaust Gas Treatment Systems,Environmental Protection Industry.

Standard Models

Type

 Channel Count Power Current
 Channel Count Signals Network No
Type  BJ-30 XX P XX S BJ-30-XXXXX-XXXX 4 channels ×120A power+
           4 channels×10A low-current
Example BJ-30 04 120 04 10 BJ-30-04120-0410

Signal Fiber Optic Rotary Joint




NET FO RJ




NET 2FO 4RJ





Configurable structure


with/without Central Through-Hole

Flange-mounted without central through-hole

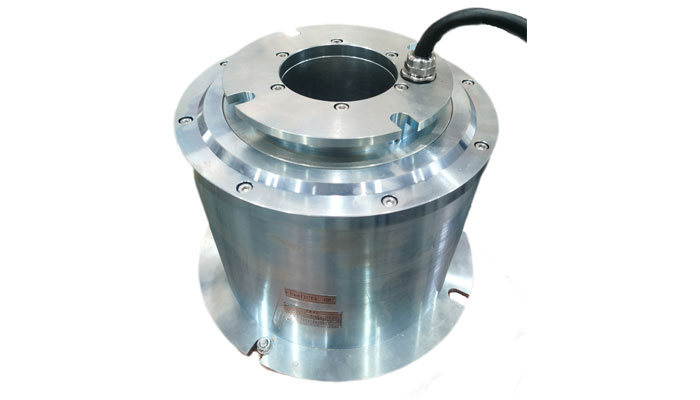

Featuring a central through-hole for the passage of additional pipes or media

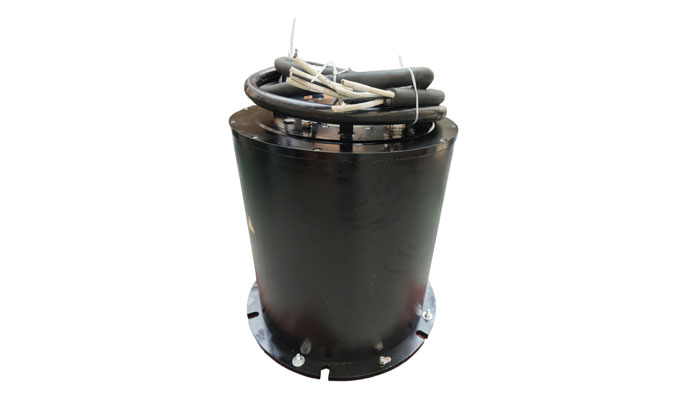

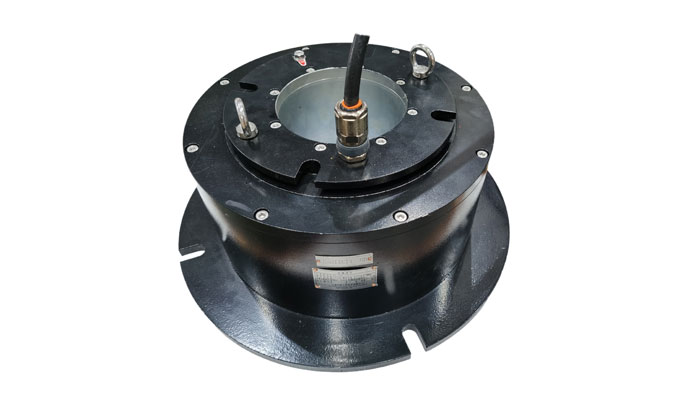

Explosion-Proof Slip Ring Examples
Electric Parameters



Technical Specifications


Operating  current

mA-1500A

Voltage

up to 15KV

Number of Channels

up to 250

Signal Options

Digital,Analog,HF,Bus,Network
Explosion-Proof Certification DIICT4(CNEX)   II 2G Ex db IIC T4 Gb(ATEX)

Mechanical Properties

Rotational Speed

up to 50RPM

Shell Material

Optional 316L Stainless Steel

Contact Material

Optional High-Silver Alloy or Precision Gold Contacts

Working Temperature

-50°C ... +75°C


[-50°F ... +167°F]

Ingress Protection

IP00-IP67

Optionals

Rotary Encoder
Rotary Joint
Fiber Optic Rotary Joint
Cable Outlet Configuration-Terminal or Tail Cable
Transmission Method
Mounting
